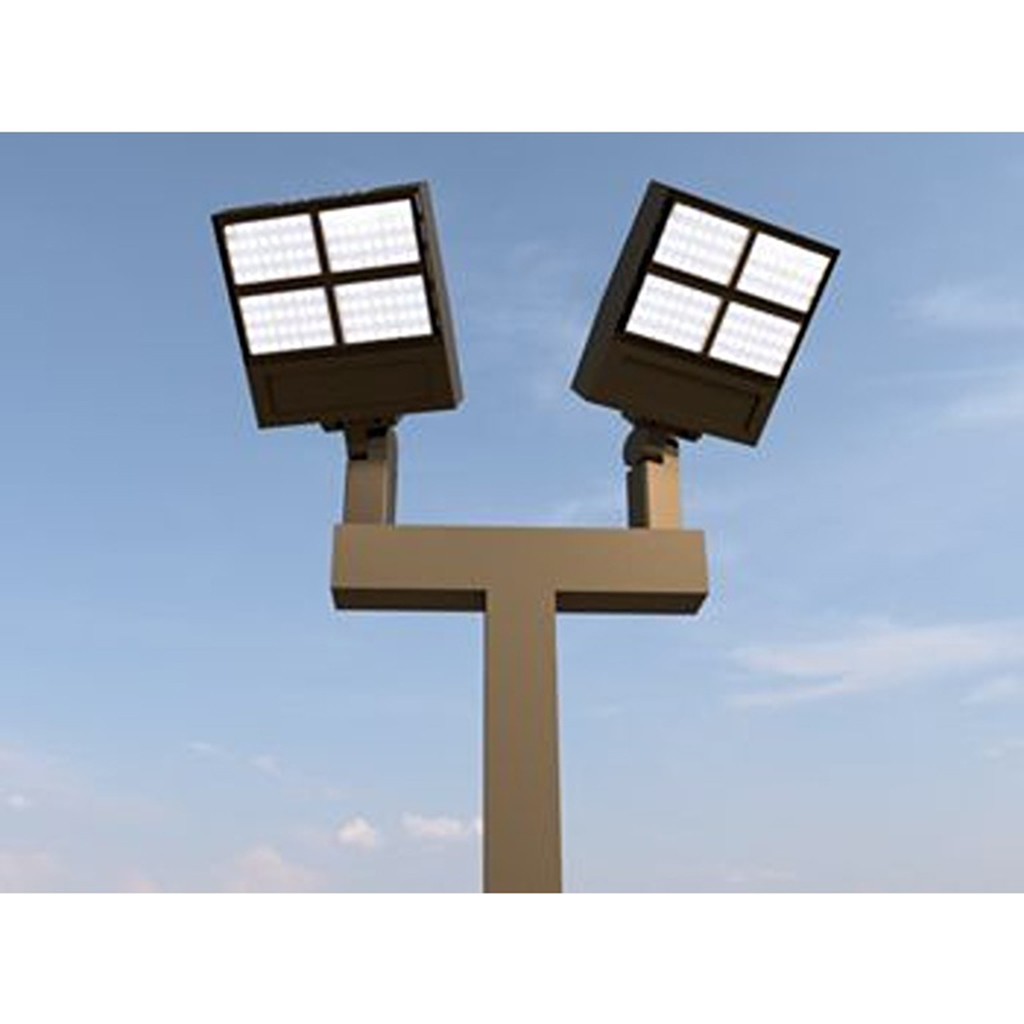

Parking Lot Light Pole Kit (2 Light Adjustable Option)

LED Fixture 23x12x3"-25x14x4", 16X16 housings available Slip fitter option (fully adjustable) LED Wattage: 60-400 watts LED Lumen Output: 8500-56000 lumens Optics:TYPE 3 optics Kelvin Temperature 5000K Color: Bronze,Black,White, Gray Specification sheets available Warranty: 5 YEARS Led Hours rating:80000 Hours Tenon or Bull horn: single,two light,3 light, 4 light x-configuration Tenon size: 2-3/8 Type: square inline Color: Bronze Light pole material All material shall be weldable-grade, hot rolled, commercial quality carbon steel tubing. Base plate and hand hole material shall conform to ASTM A36. All welds shall conform to AWS D1.1 using E70xx electrodes. EPA Calculations Based on AASHTO Standard Specifications for structural supports for highway signs,luminaires and traffic signals, 1994 edition using and EPSA weight of 25 lbs-per square ft of EPA Height coefficients based on formula (H/30^(1/7). EPA's are calculated at the top of shaft. All welds shall conform to AWS D1.1 using E70xx electrodes. Anchor Bolts Per AASHTO M314-9 Grade 55' with galvanized steel hex nuts,lock washers and flat washers Hand hole and electrical cover 2 piece ABS base cover Steel reinforced hand hole cover with gasket Pole finish Bronze, Black,White, Gray powder coated Luminaire mounting Style Tenon top with 4" x 2-3/8 tenon Drill style with 1-2-3-4 side drilling available Pole Shipping Free pole shipping will apply only to commercial locations with docks and or forklifts
