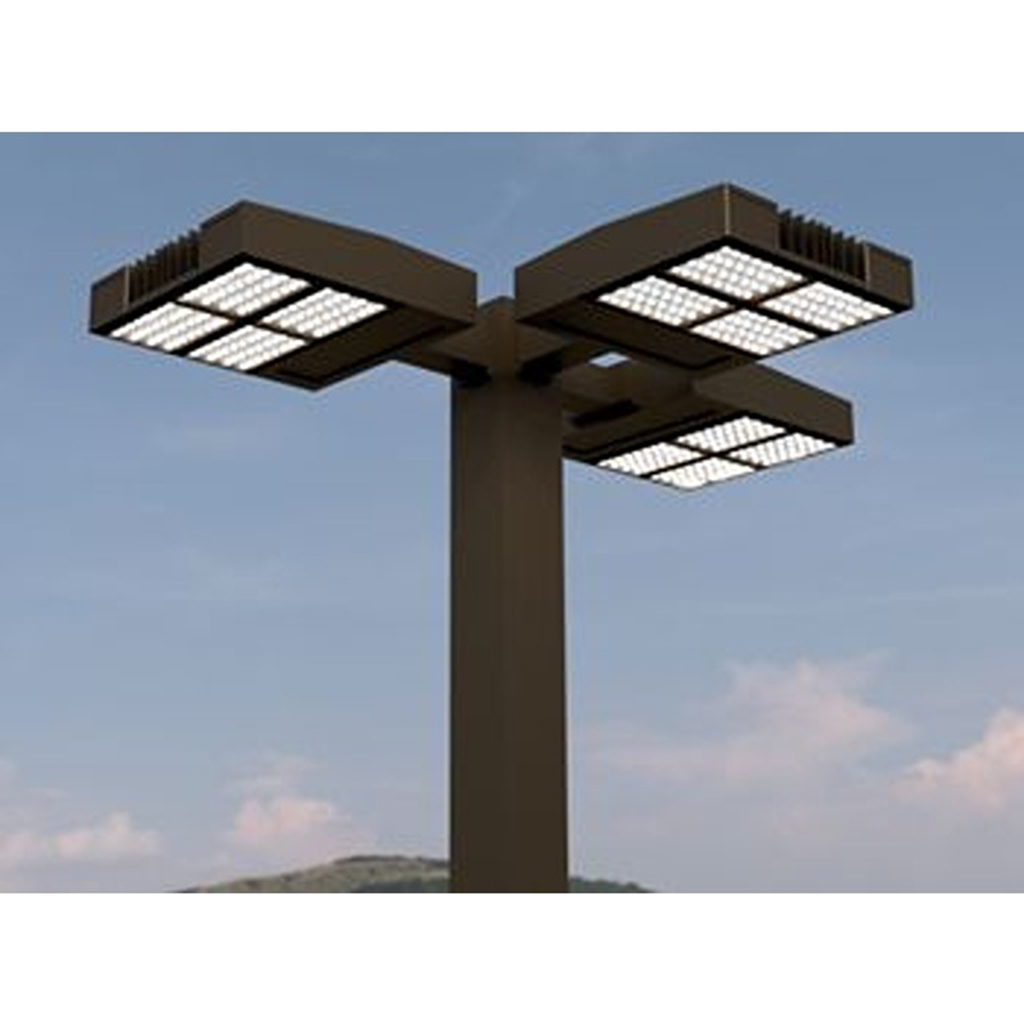

LED Parking Lot Light Pole Kit (3 Light Option)

Download or view specifications

Square Steel Light Poles

Pole Production time 3-4 weeks
Stationary Shoebox style with 6″arm mount
LED wattage (60-400 watt)
System wattage (60-400 watt)
Lumen package (8500-56000 lumens)
Metal halide equivalency (100-1500 watt)
standard voltage 120-208-240-277
480 volt option available PLEASE CALL

Pole options

  • Drilled from 1-4 fixtures
  • Pole gauge 11 (.125 wall) to 7 (.188 wall) gauge

Pole size

  • 4×4 bolt circle 8-9″ With 3/4 x 17 x 3 j-bolts
  • 5×5 bolt circle 10-12″ With 1 x 36 x 4 j-bolts
  • 6×6 bolt circle 11-13″ With 1 x 36 x 4 j-bolts

Pole height

20-39ft

Pole color options

  1. Bronze
  2. Black
  3. White
  4. Gray

Included with pole kit

  1. 3-LED fixtures with 6″ mounting arms
  2. Light pole with anchor bolts with template
  3. Base cover
  4. Electrical cover
  5. Top cap

Reviews

There are no reviews yet.

Be the first to review “Parking Lot Light Pole Kit (3 Light Option)”

Your email address will not be published. Required fields are marked

LED Fixture 23x12x3"- 25x14x6" housings available Arm mounted (stationary) LED Wattage: 60-400 watts LED Lumen Output : 8500-56000 lumens Optics:TYPE 3 optics Kelvin Temperature 5000K Color: Bronze,Black,White, Gray Specification sheets available Warranty: 5 YEARS Led Hours rating:80000 Hours Light pole material All material shall be weldable-grade, hot rolled, commercial quality carbon steel tubing. Base plate and hand hole material shall conform to ASTM A36. All welds shall conform to AWS D1.1 using E70xx electrodes. EPA Calculations Based on AASHTO Standard Specifications for structural supports for highway signs,luminaires and traffic signals, 1994 edition using and EPSA weight of 25 lbs-per square ft of EPA Height coefficients based on formula (H/30^(1/7). EPA's are calculated at the top of shaft. All welds shall conform to AWS D1.1 using E70xx electrodes. Anchor Bolts Per AASHTO M314-9 Grade 55' withe galvanized steel hex nuts,lock washers and flat washers Hand hole and electrical cover 2 piece ABS base cover Steel reinforced hand hole cover with gasket Pole finish Bronze, Black,White, Gray powder coated Luminaire mounting Styles Tenon top with 4" x 2-3/8 tenon Drill style with 1-2-3-4 side drilling available Pole Shipping Free pole shipping will apply only to commercial locations with docks and or forklifts
